High chromium roll materials form a group of wear-resistant cast roll alloys characterized by significant chromium additions and the formation of chromium-rich carbides within the microstructure. These materials can be divided into two main groups; High Chromium Cast Iron Rolls (HiCr Cast Iron) and High Chromium Cast Steel Rolls (HiCr Cast Steel).
The primary metallurgical difference lies in carbon content and carbide formation. HiCr Cast Iron Rolls contain higher carbon levels, resulting in the formation of large primary chromium carbides, while HiCr Cast Steel Rolls contain lower carbon levels with finer carbides dispersed within a steel-based matrix.
Selecting the most suitable high chromium roll grade therefore often requires a case-specific technical evaluation. A brief technical exchange with Vulcan Metal can help determine the most appropriate solution based on current roll materials, mill configuration and operational experience.
The table below provides a simplified comparative metallurgical overview of these high chromium cast roll materials.
High Chromium Cast Iron (High Chrome Cast Iron, HiCr Cast Iron or HiCr Iron) rolling mill rolls are wear-resistant materials characterized by high chromium content and a microstructure containing hard chromium carbides within a martensitic or bainitic matrix.
Typical compositions contain approximately 2.5 - 3.5% carbon and 12 - 20% chromium, promoting the formation of chromium-rich carbides (primarily M7C3 type) distributed throughout the metallic matrix. These carbides play a major role in the material’s wear resistance.
The matrix structure may consist of martensite, tempered martensite or bainite, depending on alloying elements and heat-treatment practice.

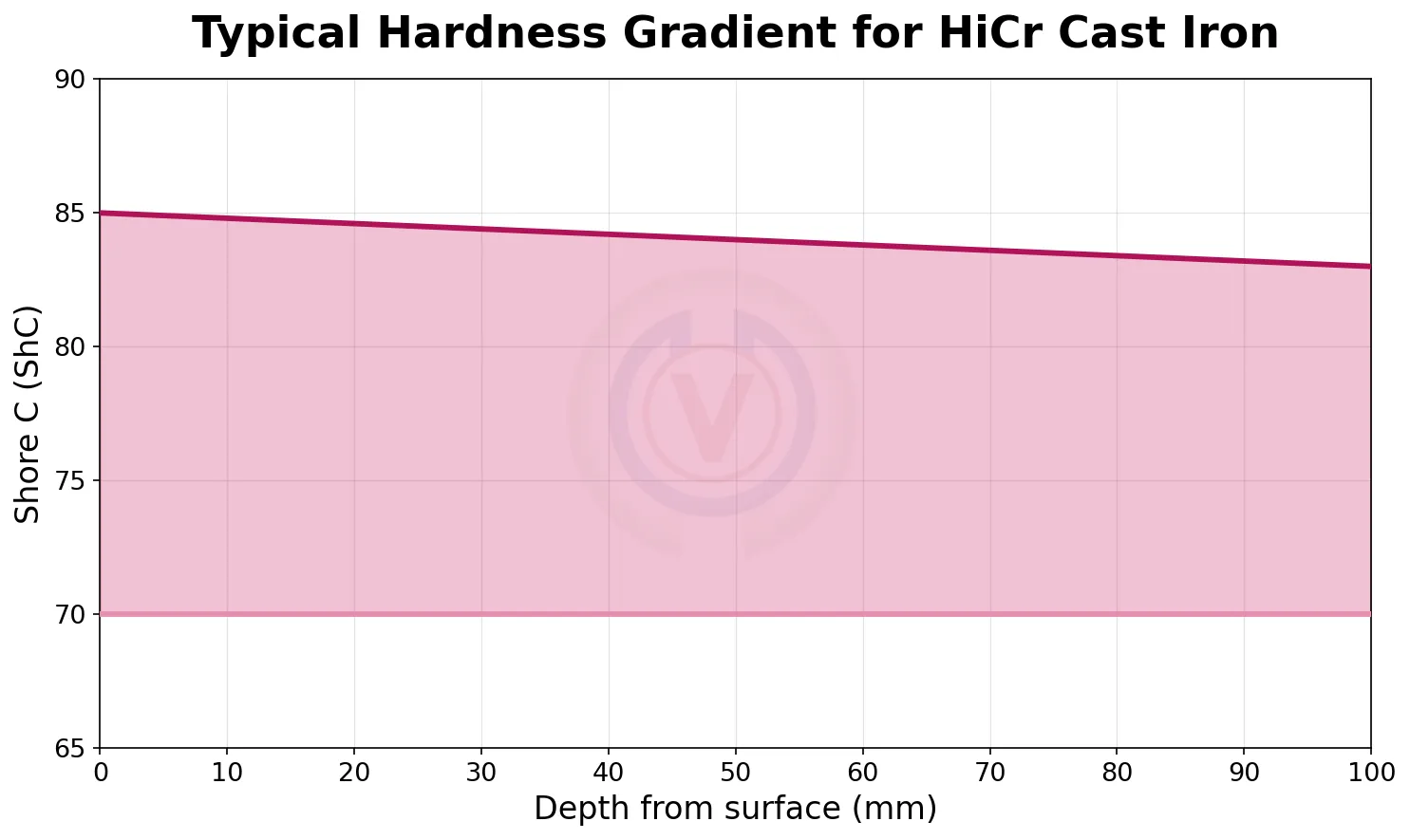

Compared with other cast roll materials, high chromium iron rolls provide very high wear resistance and stable hardness penetration, resulting from their high chromium carbide content and controlled heat treatment.
Due to their metallurgical characteristics, these materials may be used in both long product and flat product rolling mills, depending on roll design, mill configuration and rolling parameters.
High Chromium Cast Steel (HiCr Cast Steel, HiCr Cast Steel or HiCr Steel) rolling mill rolls are a type of alloy cast steel roll containing relatively high chromium levels, typically ranging from approximately 8% to 14% chromium, combined with carbon contents between 0.8% and 1.6%.
The microstructure typically consists of a tempered martensitic or bainitic matrix containing finely dispersed chromium carbides. This results in improved wear resistance compared with conventional alloy cast steel rolls while maintaining higher toughness than high chromium cast iron materials.

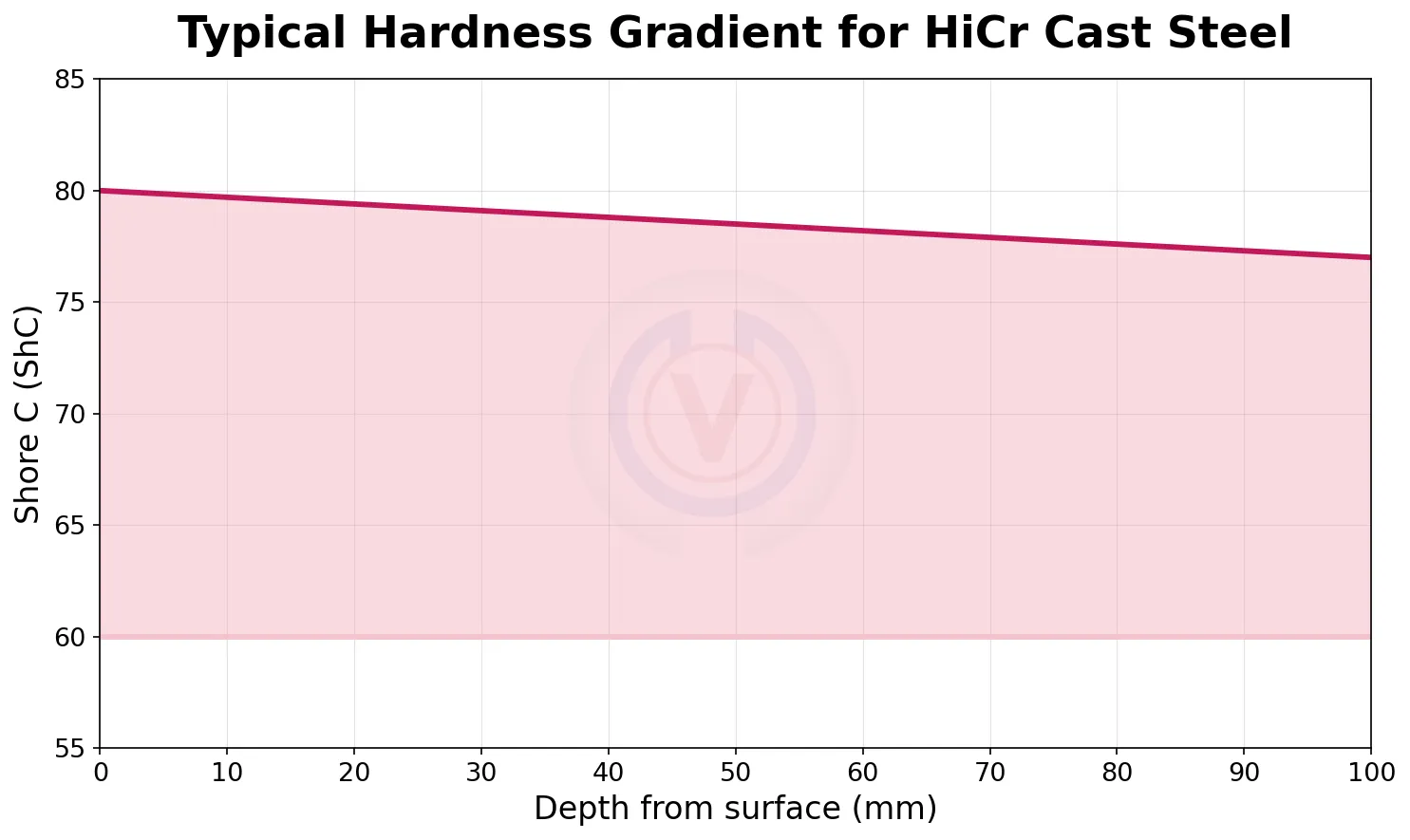

These rolls are typically subjected to controlled heat treatment in order to achieve the required balance of hardness, toughness and wear resistance.
Due to the strong carbide-forming effect of chromium, these rolls exhibit good resistance to wear, oxidation and thermal fatigue. Combined with good resistance to thermal shock and mechanical loading, they are commonly used in roughing and intermediate stands of both long product and flat rolling mills.
High chromium cast rolls belong to the broader family of cast rolling mill rolls used in steel rolling mills. HiCr
Cast Steel Rolls are most commonly manufactured by centrifugal casting, while HiCr Cast Iron Rolls are produced using both static and centrifugal casting depending
on roll design, mill configuration, rolling mill parameters and finished
products.
Vulcan Metal provides
cast high chromium rolling mill rolls and other cast roll materials for steel
rolling mills worldwide from Turkey.
