Cr-Mo Forged Work Rolls (Cr2, Cr3, Cr5)

Cr-Mo Forged Work Rolls (Cr2 WR, Cr3 WR, Cr5 WR) are primarily used in hot strip mills (HSM) and cold strip mills (CSM), as well as in skin pass and aluminum rolling mills. In these applications, rolled product surface quality, controlled wear, and sufficient hardness depth directly determine rolling performance and campaign stability.

In long product mills, their use is primarily linked to the mechanical limitations of cast rolls rather than production performance. They are typically introduced in stands exposed to repeated overloads and recurring roll breakage, where cast roll materials do not provide sufficient toughness for reliable operation. This is more common in breakdown (BD) and roughing stands rolling special steel grades, where rolling loads are highest and the failure risk increases. However, it may also occur in carbon steel mills when operating conditions or roll geometry, particularly unfavorable length-to-diameter ratios, lead to repeated roll failures.

Grade selection must not be determined by mill or stand type alone. It should be based on rolling mill parameters and performance targets, including rolling load, wear behavior, thermal conditions, and grinding practice for flat products or groove geometry for long products. The objective is to maintain a controlled balance between wear resistance, toughness, and effective hardness depth to ensure stable performance throughout the campaign.

Cr2 WR, Cr3 WR and Cr5 WR belong to the same Cr-Mo forged roll family. The difference lies in how wear resistance, hardenability, and toughness are balanced according to actual rolling mill conditions.

Grade Comparison and Selection

Cr-Mo Forged Work Rolls (Cr2 WR, Cr3 WR, Cr5 WR) form a grade group in which wear resistance, toughness, and hardness depth are balanced. The difference between these grades lies in how these properties are achieved under actual rolling conditions.

Higher alloy levels may improve wear resistance and hardness depth, but only when supported by mill stability, heat treatment quality, and grinding practice. Increased alloy content reduces tolerance to unstable conditions, requiring tighter control of mill stability and operation. The most alloyed grade is not always the correct solution. Grade selection must be based on actual rolling conditions, thermal severity, mill stability, and campaign targets.

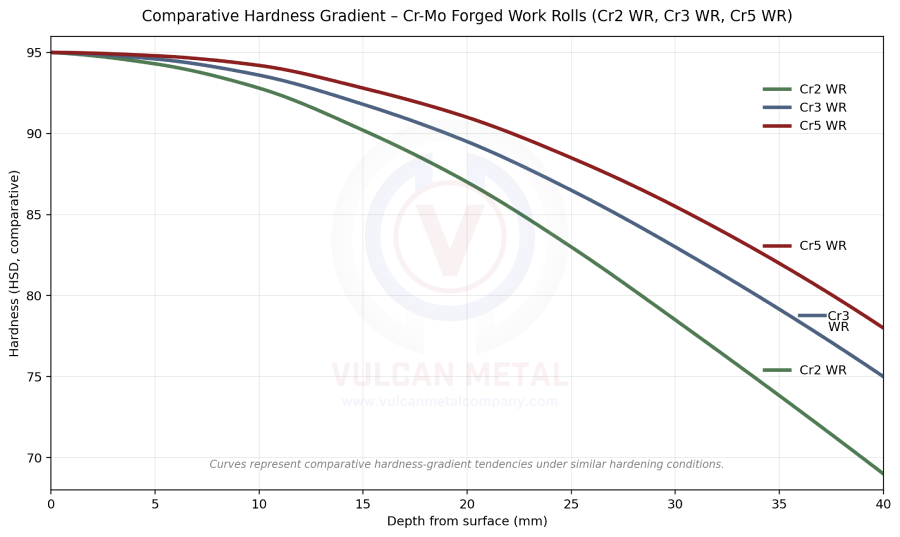

Comparative hardness gradient of Cr-Mo forged work rolls showing Cr2, Cr3 and Cr5 WR hardness versus depth from surface
Grade Cr2 WR
 Cr3 WR Cr5 WR
Selection Criteria Toughness and instability tolerance Wear and toughness balance
 Wear resistance and hardness depth
Hardenability Lower Medium Higher
Effective Working Layer Lower Medium Higher
Wear Resistance Lower Medium Higher
Toughness Higher Medium to High Medium
Instability Tolerance Higher Medium to High Lower
Thermal Crack Resistance Higher Medium to High
 Lower to Medium
Surface Damage Tendency Lower Medium Medium to Higher
Grinding Sensitivity Medium Medium to High Higher
Cooling Sensitivity Medium Medium to High Higher

Forged Work Rolls

Cr-Mo Forged Work Rolls (Cr2 WR, Cr3 WR, Cr5 WR) belong to the broader family of forged rolling mill rolls used in steel and non-ferrous rolling mills.

Vulcan Metal provides forged rolling mill rolls, including Cr-Mo Forged Work Rolls and other forged roll materials, selected according to actual rolling mill conditions and performance requirements.

For additional information, you can also consult our page on Forged Rolling Mill Rolls.

In addition, you may refer to our dedicated pages covering the main forged roll material families:
