Cast High Speed Steel (HSS) Rolling Mill Rolls

Cast High Speed Steel (HSS) roll materials represent a group of advanced alloyed cast roll grades characterized by a carbide-rich microstructure and high alloy content. These materials provide high wear resistance while maintaining sufficient toughness for demanding rolling conditions.

HSS grades are typically divided into Semi-HSS, HSS and Enhanced HSS (EN-HSS), representing increasing alloy content and carbide density, as alloying increases, wear resistance improves while toughness gradually decreases.

Cast HSS rolls are manufactured by centrifugal casting to ensure controlled carbide distribution and internal soundness. Static casting is not suitable for HSS due to segregation and lack of control in carbide distribution.

Selecting the most suitable high speed steel roll grade therefore often requires a case-specific technical evaluation. A brief technical exchange with Vulcan Metal can help determine the most appropriate solution based on current roll materials, mill configuration and operational experience.

The table below provides a simplified comparative metallurgical overview of these cast HSS roll materials.

Grade Cast Semi-HSS Cast HSS Cast EN-HSS
Carbon Content (%) 0.60 - 1.30 1.50 - 2.20
 1.80 - 2.60
Typical Matrix Tempered martensitic-bainitic matrix with dispersed carbides Tempered martensitic matrix with uniformly distributed carbides
 Tempered martensitic matrix with dense fine carbides
Graphite Presence None None None
Carbide Content Medium High Very High
Hardness Range (ShC) 70 - 80 75 - 85 80 - 90
Hardness Penetration Good Very Good Very Good
Tensile Strength (MPa) 700 - 900 800 - 1000 850 - 1050
Yield Strength (MPa) 450 - 650 500 - 700 550 - 750
Bending Load Capacity High Medium-High Medium
Impact Toughness High Medium-High Medium
Thermal Shock Resistance High Medium-High Medium
Thermal Fatigue Resistance Good Good Moderate
Wear Resistance Medium-High High Very High
Heat Treatment Controlled cooling + tempering Multi-stage HT + tempering Multi-stage HT + tempering

Semi High Speed Steel Rolling Mill Rolls (Semi-HSS)

Semi High Speed Steel (Semi-HSS) rolling mill rolls represent a transitional material group between alloy cast steel rolls and full HSS grades, developed to provide a balanced combination of wear resistance and toughness.

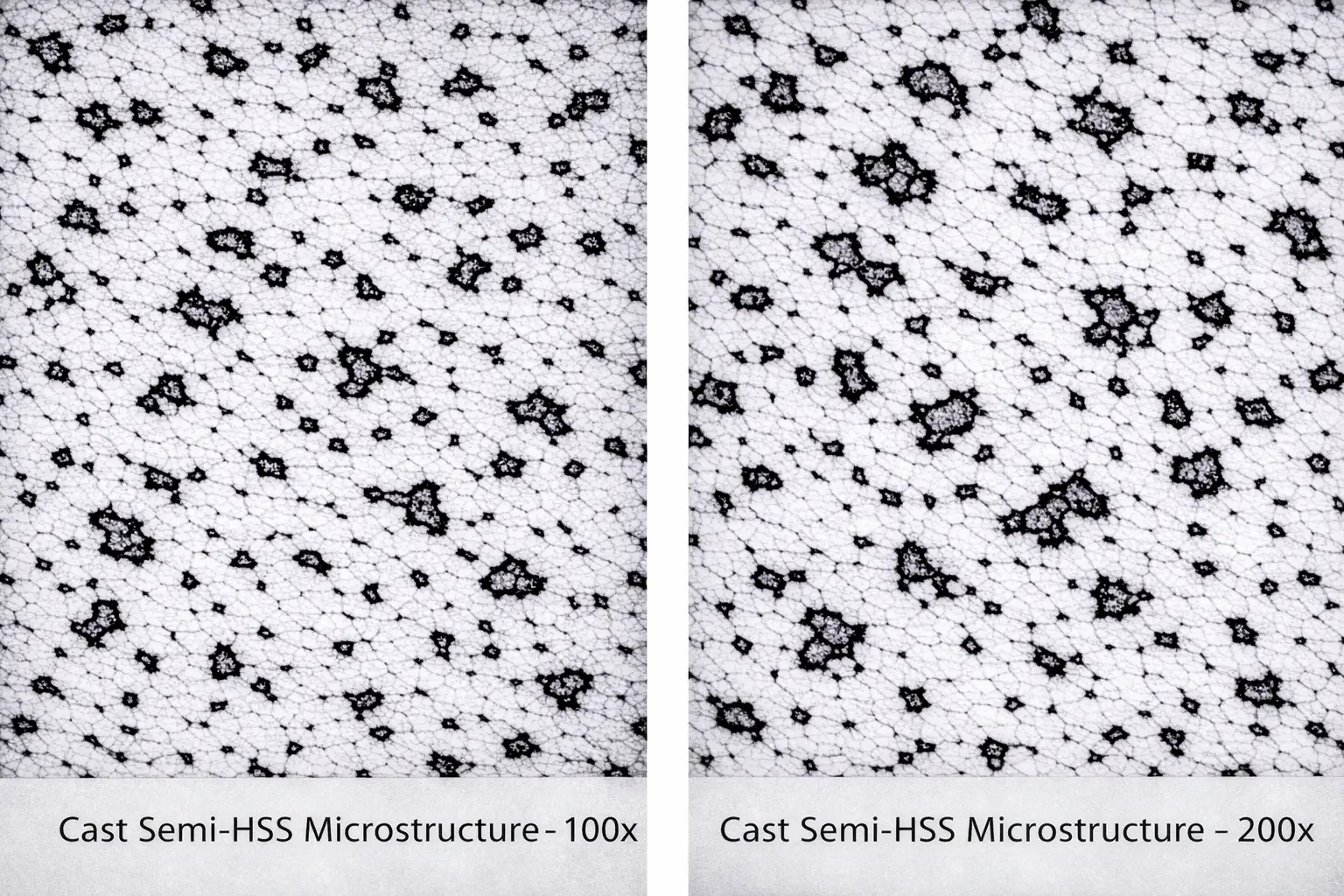

Cast Semi-HSS (Semi High Speed Steel) rolling mill roll microstructure showing tempered martensitic–bainitic matrix with dispersed alloy carbides at 100x and 200x magnification

The microstructure typically consists of a tempered martensitic–bainitic matrix containing a moderate amount of finely dispersed alloy carbides. Compared with conventional cast steel rolls, this results in improved wear resistance while maintaining good performance under thermal shock and mechanical loading.

These rolls are typically subjected to controlled heat treatment to achieve the required balance of hardness, toughness and structural stability.

Due to their metallurgical characteristics, Semi-HSS rolls provide reliable performance under moderate wear conditions. This material is not restricted to a specific stand group; its selection is determined by roll design and mill conditions.

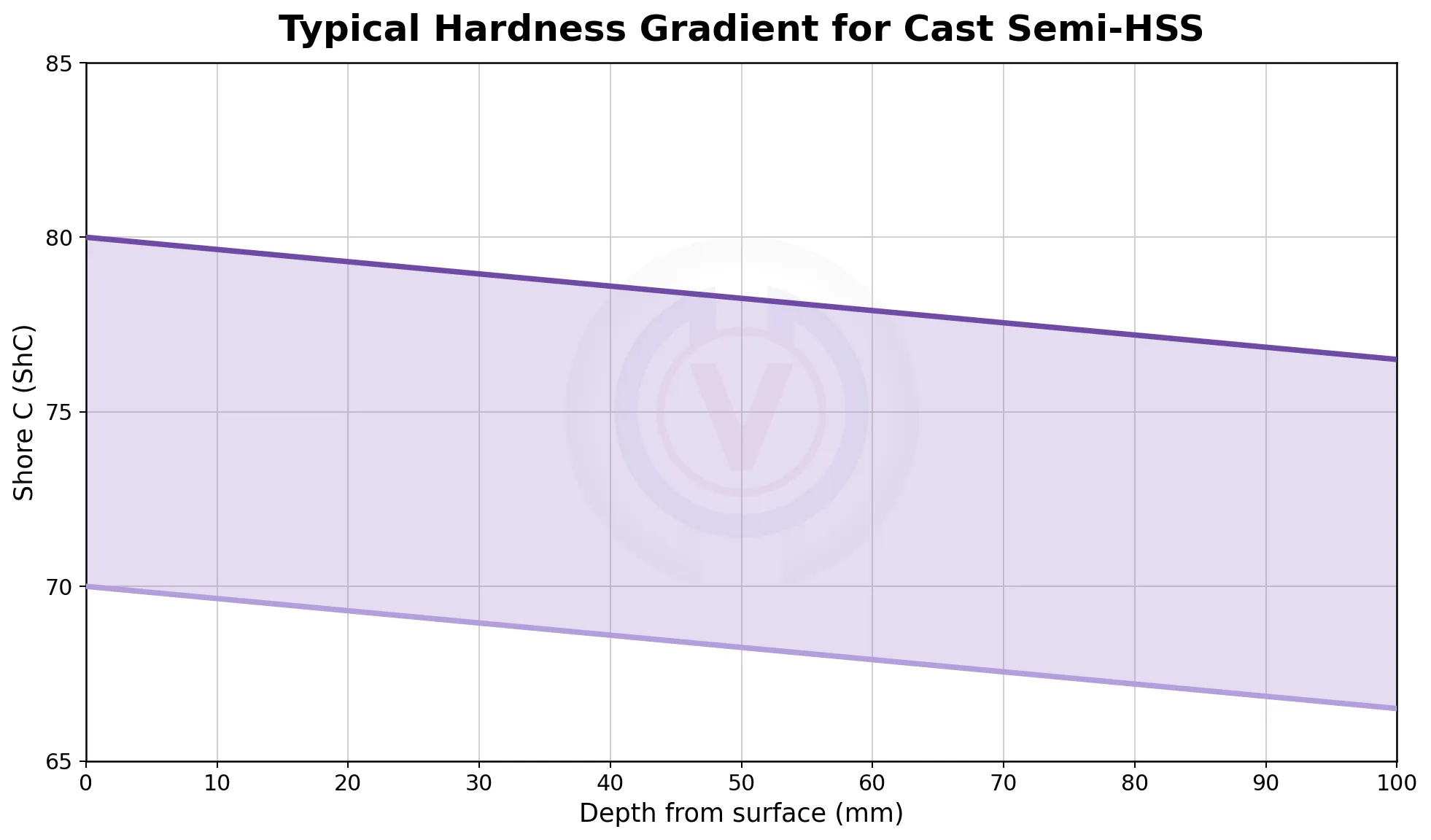

Typical hardness gradient for Cast Semi-HSS (Semi High Speed Steel) rolling mill roll showing Shore C hardness versus depth from surface

High Speed Steel Rolling Mill Rolls (HSS)

High Speed Steel (HSS) rolling mill rolls are characterized by a high alloy content and a carbide-rich microstructure, delivering significantly higher wear resistance compared with conventional cast steel grades.

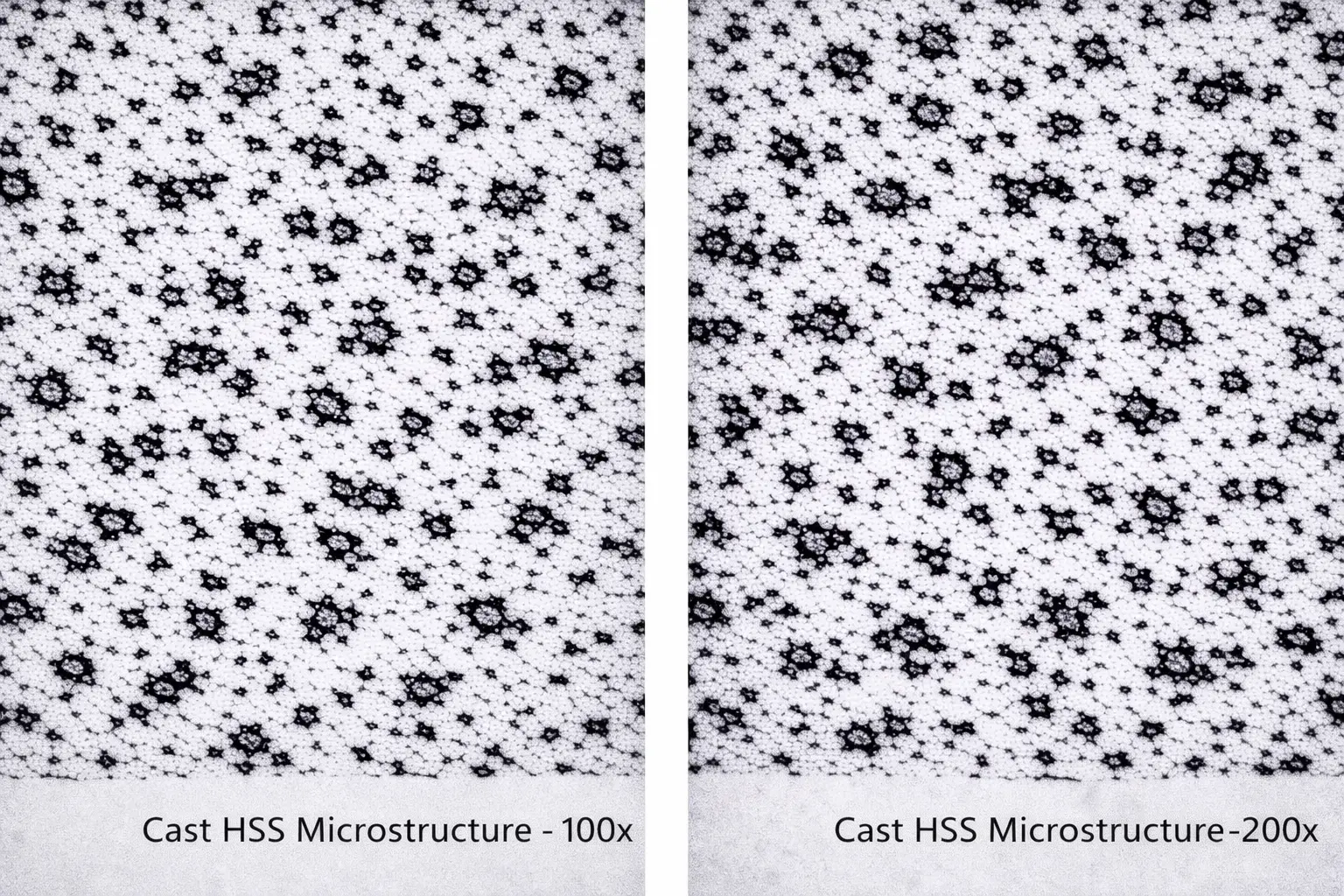

Cast HSS (High Speed Steel) rolling mill roll microstructure showing tempered martensitic matrix with uniformly distributed alloy carbides at 100x and 200x magnification

The microstructure typically consists of a tempered martensitic matrix containing a high volume of finely distributed alloy carbides, ensuring stable wear resistance and consistent performance.

These rolls are manufactured using multi-stage heat treatment to achieve the required balance of hardness, toughness and structural stability.

Due to the strong carbide-forming elements, HSS rolls provide high resistance to wear, oxidation and thermal fatigue. They maintain stable performance under thermal shock and mechanical loads. As with Semi-HSS, this material is not restricted to a specific stand group. Selection is determined by roll design and mill conditions.

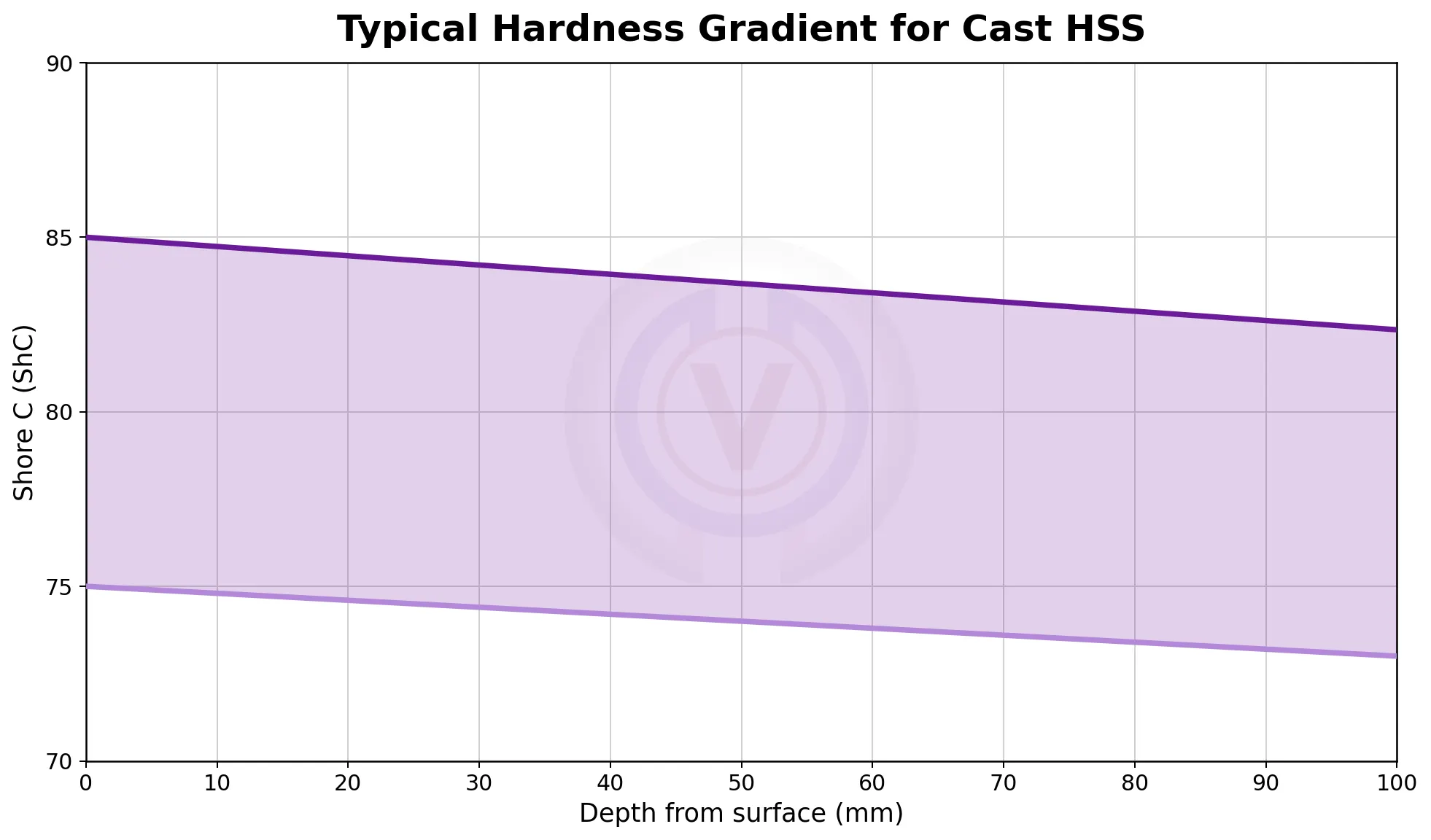

Typical hardness gradient for Cast HSS (High Speed Steel) rolling mill roll showing Shore C hardness versus depth from surface

Enhanced High Speed Steel Rolling Mill Rolls (EN-HSS)

Enhanced High Speed Steel (EN-HSS) rolling mill rolls represent the highest alloyed grades within the cast HSS family, designed to provide maximum wear resistance under severe rolling conditions.

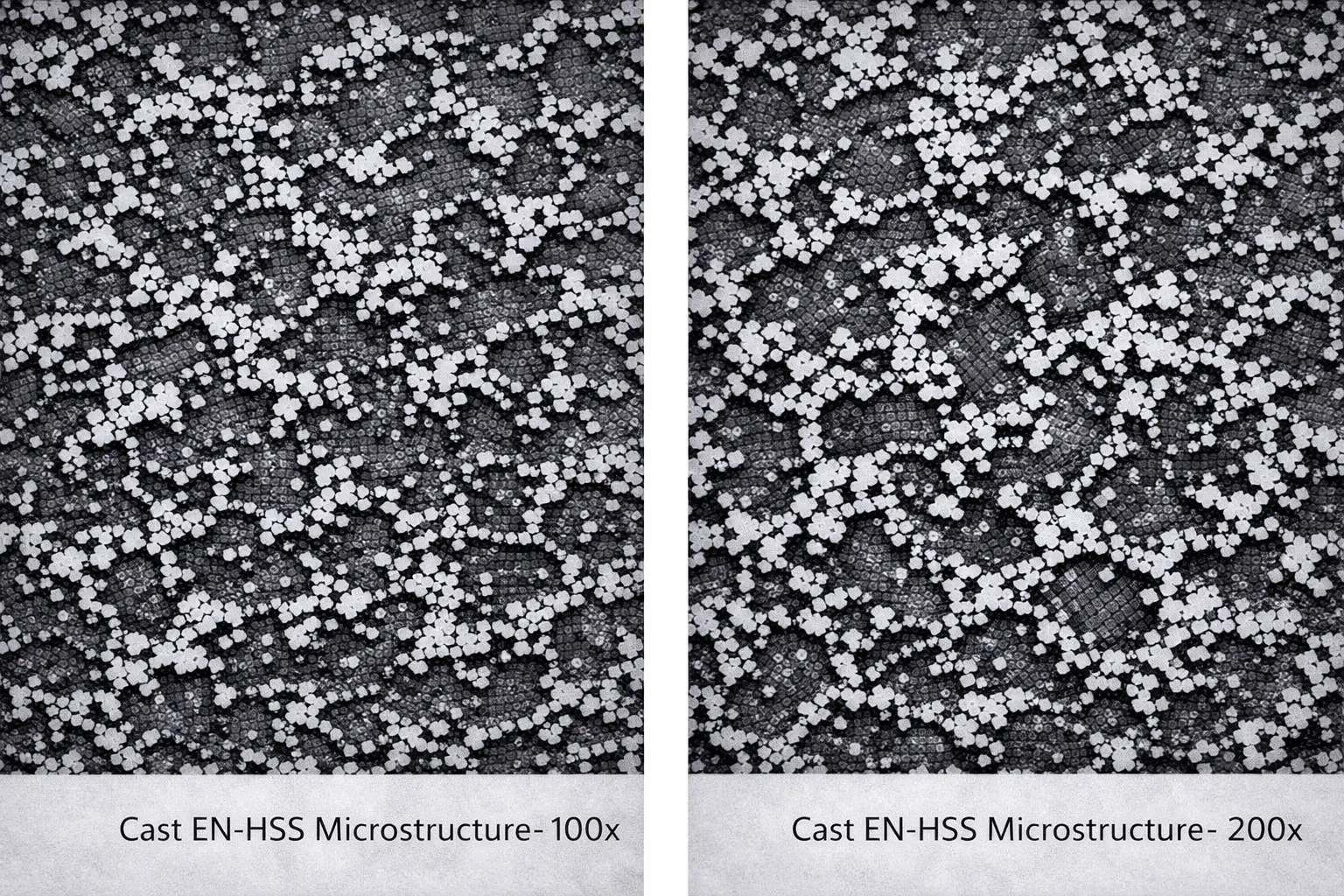

Cast EN-HSS (Enhanced High Speed Steel) rolling mill roll microstructure showing tempered martensitic matrix with high density of alloy carbides at 100x and 200x magnification

The microstructure typically consists of a tempered martensitic matrix containing a very high density of finely distributed alloy carbides. Compared with standard HSS, this matrix provides superior wear resistance, whereas toughness is reduced.

These rolls are manufactured using multi-stage heat treatment to achieve the required balance of hardness, wear resistance and structural stability.

Due to the increased alloy content and carbide density, EN-HSS rolls provide very high wear resistance together with good resistance to oxidation and thermal fatigue. As with Semi-HSS and HSS, this material is not restricted to a specific stand group. Selection is determined by roll design and mill conditions, particularly in severe rolling conditions where wear resistance is the primary requirement.

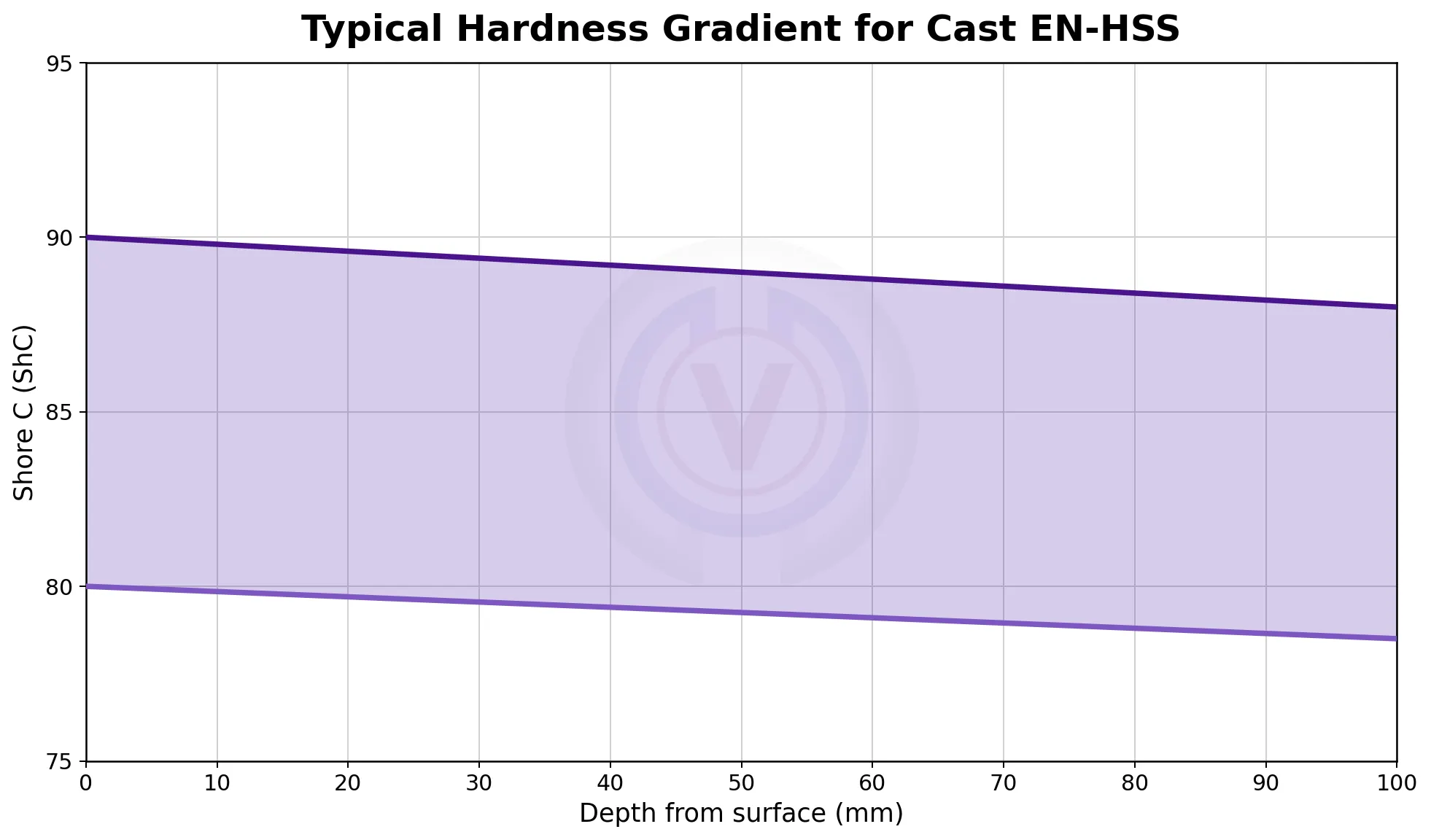

Typical hardness gradient for Cast EN-HSS (Enhanced High Speed Steel) rolling mill roll showing Shore C hardness versus depth from surface

Casting Method for High Speed Steel (HSS) Rolling Mill Rolls

Cast High Speed Steel (HSS) Rolls belong to the broader family of cast rolling mill rolls used in steel rolling mills. These rolls are manufactured by centrifugal casting to ensure controlled carbide distribution and internal soundness. They are used in both long and flat rolling mills depending on roll design and mill configuration.

Vulcan Metal provides cast HSS rolling mill rolls and other cast roll materials for steel rolling mills worldwide from Turkey.

For additional information, you can also consult our pages on Cast Rolling Mill Rolls and Centrifugal Cast Rolls.
