Cr-Mo Forged Backup Rolls (Cr3, Cr5)

Cr-Mo Forged Backup Rolls (Cr3 BUR, Cr5 BUR) are selected where section integrity, contact fatigue resistance, and load-bearing stability are critical under high rolling loads. Unlike forged work rolls, their performance is not defined primarily by surface wear, but by their ability to support the work roll system, carry rolling load, and remain stable through long campaigns.

Grade selection is essential under high rolling loads, extended campaigns, overload conditions and operating instability. It becomes critical when rolling higher strength grades and both very thin and thick sections. In such cases, backup roll performance is governed mainly by contact fatigue resistance, load distribution, and overload tolerance, rather than alloy level alone.

Grade selection must be based on rolling mill parameters and performance targets, including rolling load, load distribution, overload history, mill stability, required hardness depth, and campaign expectations. Backup rolls must not be selected with work roll logic.

Cr3 BUR and Cr5 BUR belong to the same Cr-Mo forged backup roll family. Their difference lies in how contact fatigue resistance, load-bearing capacity, toughness, hardness depth, and instability tolerance are balanced according to actual rolling conditions.

Grade Comparison and Selection

Cr-Mo Forged Backup Rolls (Cr3 BUR, Cr5 BUR) form a grade group in which contact fatigue resistance, toughness, and hardness depth are balanced. The difference between Cr3 BUR and Cr5 BUR lies in how load-bearing stability and tolerance to unstable conditions are achieved under actual rolling conditions.

Higher alloy levels may improve hardness depth and contact fatigue resistance, but only when supported by mill stability, roll internal integrity, heat treatment quality, and grinding practice. The highest alloyed grade is not always the correct solution. Grade selection must be based on actual rolling conditions, load distribution, overload history, and campaign targets.

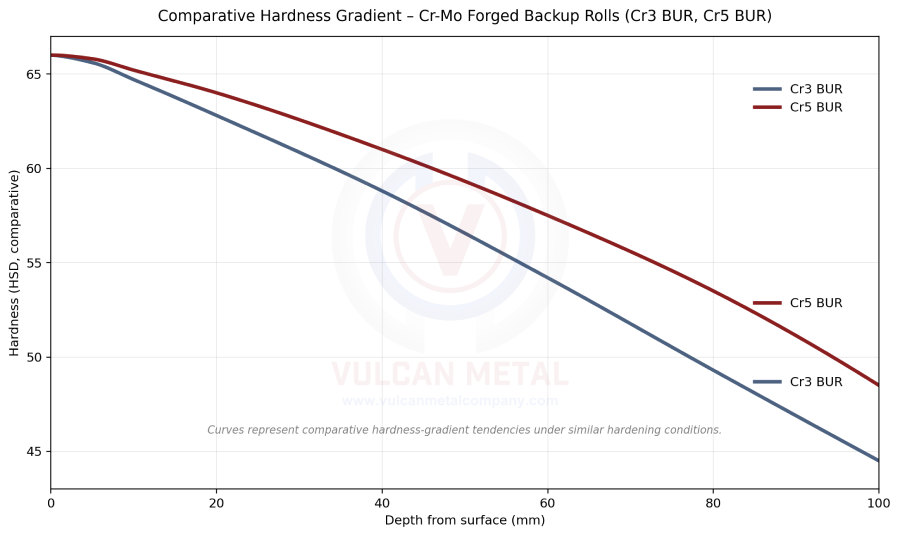

Comparative hardness gradient of Cr-Mo forged backup rolls showing Cr3 and Cr5 BUR hardness versus depth from surface
Grade Cr3 BUR Cr5 BUR
Selection Criteria Stability and overload tolerance
 Hardness depth and contact fatigue resistance
Hardenability Medium Higher
Effective Working Layer Medium Higher
Toughness Higher Lower
Load-bearing Stability Higher
 Medium
Overload Tolerance Higher Lower
Instability Tolerance Higher Lower
Contact Fatigue Resistance Medium to High Higher
Crack / Spalling Tendency Lower Higher
Grinding Sensitivity Lower Higher
Cooling Sensitivity Lower Higher

Forged Backup Rolls

Cr-Mo Forged Backup Rolls (Cr3 BUR, Cr5 BUR) belong to the broader family of forged rolling mill rolls used in steel and non-ferrous rolling mills.

Vulcan Metal provides forged rolling mill rolls, including Cr-Mo forged backup rolls and other forged roll materials, selected according to actual rolling mill conditions and performance requirements.

For additional information, you can also consult our page on Forged Rolling Mill Rolls.

In addition, you may refer to our dedicated pages covering the main forged roll material families:

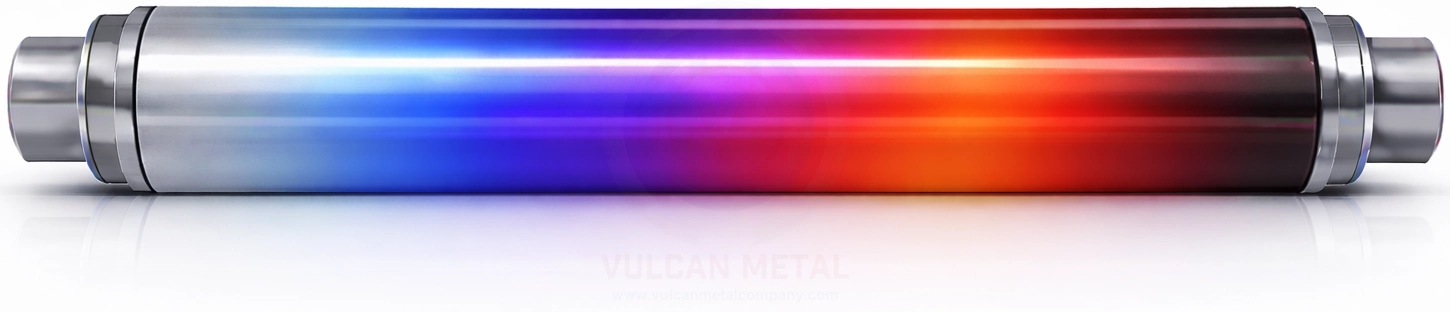

A large rolling mill roll showing forged and cast rolling mill rolls grades and materials
